Features
Model：SM-1519

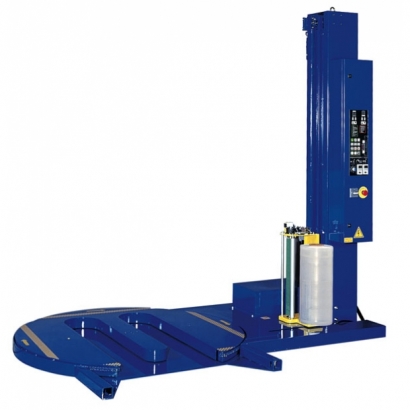

Pallet wrapping machine for transpallet
With smart and user friendly control system.
The display on the control panel is simple and clear.
Four different wrapping modes:
- Standard wrapping
- Two different types of single layer warpping modes.
- Central area automatic strengthen wrapping mode.
- Water proof wrapping mode.
With soft start / stop, home positiob device: Prevent packages falling during operation and machine can stop in position to unloading conveniently.
When the packaging is completed, the film can set to be cut automatically or manually.
Turntable speed is calculated in laps/min. Carriage up-down speed is calaulated in meters/min. It can be adjusted as required by the customer.
Top & bottom wrapping layers can be set from the control panel.
With touch control panel, waterproof panel box, PCBA, high stability.
Compact and robust construction, the machine is suitable for a variety of harsh working environments.
Full compliance and certified to CE standrad.
Specification
ShiiMeei offer a wide range of standard machines to meet customers’ products. Please contact us for more information, servie to customized equipement.
| Function/Model | SM-1519 | SM-1819 | SM-2019 |
|---|---|---|---|
| Turntable diameter | SM-1506E 經濟型：Ø1500mm |
SM-1506 標準型：Ø1800mm |
SM-1506C 商業型：Ø2000mm |
| Turntable height | SM-1506E 經濟型：80mm |
SM-1506 標準型：80mm |
SM-1506C 商業型：80mm |
| 功能/型號：Max. packing dimension | SM-1506E 經濟型：1300mm x 1300mm |
SM-1506 標準型：1400mm x 1400mm |
SM-1506C 商業型：1500mm x 1500mm |
| Max. packing height | SM-1506E 經濟型：2100mm |
SM-1506 標準型：2100mm |
SM-1506C 商業型：2100mm |
| 功能/型號：Max. loading weight | SM-1506E 經濟型：2000kg |
SM-1506 標準型：2000kg |
SM-1506C 商業型：2000kg |
| 功能/型號：Machine dimension | SM-1506E 經濟型：L2540mm x W1500mm x H2295mm |
SM-1506 標準型：L2840mm x W1800mm x H2295mm |
SM-1506C 商業型：L3040mm x W2000mm x H2295mm |
**Above specification for referecne only, it depends on actual production.
