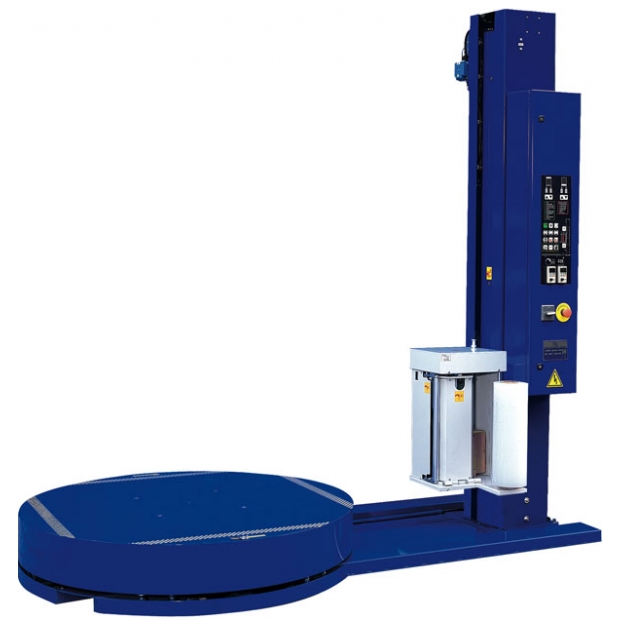

Pallet wrapping machine

SM-1317R

SM-1317R

Pre-stretch pallet wrapping machine (Heavy-duty type)
DETAIL

 Features

Model:SM-1317R
Pre-stretch pallet wrapping machine (Heavy-duty type)
With smart and user friendly control system.
The display on the control panel is simple and clear.
Four different wrapping modes:
- Standard wrapping
- Two different types of single layer warpping modes.
- Central area automatic strengthen wrapping mode.
- Water proof wrapping mode.
With soft start / stop, home positiob device: Prevent packages falling during operation and machine can stop in position to unloading conveniently.
When the packaging is completed, the film can set to be cut automatically or manually.
Turntable speed is calculated in laps/min. Carriage up-down speed is calaulated in meters/min. It can be adjusted as required by the customer.
Top & bottom wrapping layers can be set from the control panel.
With touch control panel, waterproof panel box, PCBA, high stability.
Compact and robust construction, the machine is suitable for a variety of harsh working environments.
Patented pre-stretch design can pre-stretch film up to 260%, saving film consumption by up to 60%.
Full compliance and certified to CE standrad.


 Specification

ShiiMeei offer a wide range of standard machines to meet customers’ products. Please contact us for more information, servie to customized equipement.


Function/Model SM-1317R-15 SM-1317R-18 SM-1317R-20
Turntable diameter SM-1506E
經濟型:
Ø1500mm
SM-1506
標準型:
Ø1800mm
SM-1506C
商業型:
Ø2000mm
功能/型號:Turntable height 285mm 285mm 285mm
Max. packing dimension SM-1506E
經濟型:
1300mm x 1300mm
SM-1506
標準型:
1400mm x 1400mm
SM-1506C
商業型:
1500mm x 1500mm
Max. packing height SM-1506E
經濟型:
2100mm
SM-1506
標準型:
2100mm
SM-1506C
商業型:
2100mm
Max. loading weight 3000kg 3000kg 3000kg
功能/型號:Machine dimension SM-1506E
經濟型:
L2740mm x W1500mm x H2580mm
SM-1506
標準型:
L3040mm x W1800mm x H2580mm
SM-1506C
商業型:
L3240mm x W2000mm x H2580mm

**Above specification for referecne only, it depends on actual production.
