Features

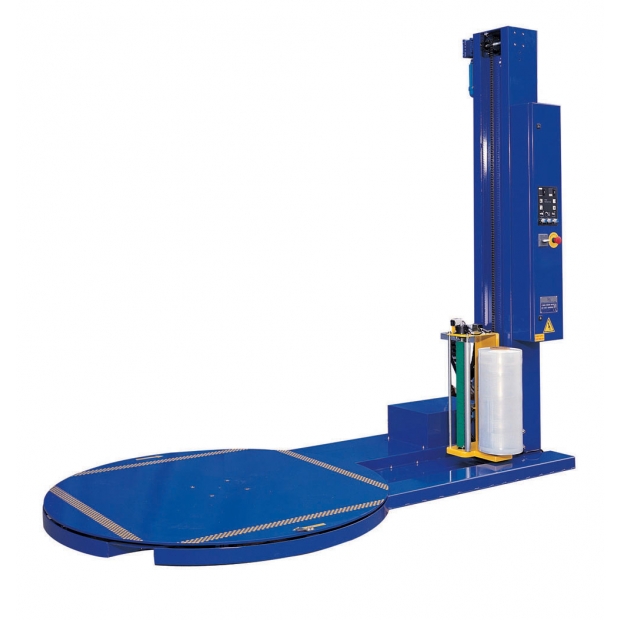

Model：SM-1506
Pallet wrapping machine
With smart and user friendly control system.
The display on the control panel is simple and clear.
Four different wrapping modes:
- Standard wrapping
- Two different types of single layer warpping modes.
- Central area automatic strengthen wrapping mode.
- Water proof wrapping mode.
With soft start / stop, home positiob device: Prevent packages falling during operation and machine can stop in position to unloading conveniently.
When the packaging is completed, the film can set to be cut automatically or manually.
Turntable speed is calculated in laps/min. Carriage up-down speed is calaulated in meters/min. It can be adjusted as required by the customer.
Top & bottom wrapping layers can be set from the control panel.
With touch control panel, waterproof panel box, PCBA, high stability.
Compact and robust construction, the machine is suitable for a variety of harsh working environments.
Full compliance and certified to CE standrad.
Specification
ShiiMeei offer a wide range of standard machines to meet customers’ products. Please contact us for more information, servie to customized equipement.
| Function/Model | SM-1506C Commercial type |
SM-1506S Super type |
|---|---|---|
| 功能/型號：Turntable diameter | SM-1506C 商業型：Ø1500mm |
SM-1506S 豪華型：Ø1500mm |
| 功能/型號：Turntable height | SM-1506C 商業型：80mm |
SM-1506S 豪華型：80mm |
| 功能/型號：Max. packing dimension | SM-1506C 商業型：1300mm x 1300mm |
SM-1506S 豪華型：1300mm x 1300mm |
| 功能/型號：Max. packing height | SM-1506C 商業型：2100mm |
SM-1506S 豪華型：2100mm |
| 功能/型號：Max. loading weight | SM-1506C 商業型：1000kg |
SM-1506S 豪華型：1000kg |
| Machine dimension | SM-1506C 商業型：L2540mm x W1500mm x H2295mm |
SM-1506S 豪華型：L2540mm x W1500mm x H2295mm |
**Above specification for referecne only, it depends on actual production.
Option

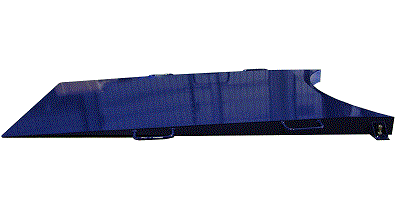

Ramp plate
It is convenient to the operator using the hand pallet jack to loading/unloading the packing product.

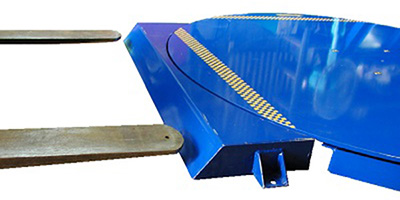

Security
To reduce machine damage caused by improper operation.
